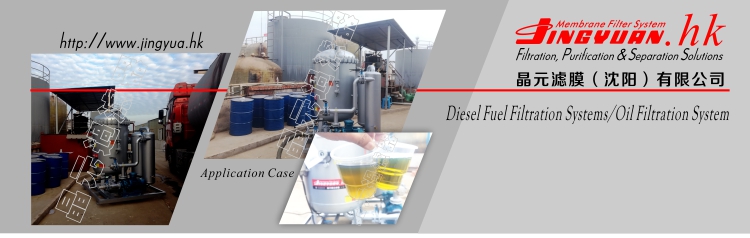

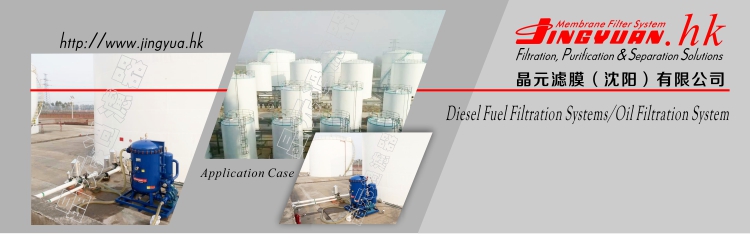

Customer: CNPC Nongken Petroleum Co., Ltd. Oil Depot in Heilongjiang Province

Problem:

After being refined, there is still a little impurity, colloid and water contained in diesel, affect the quality of it.

Solution:

Install one set or several sets of JY-DF60A Large Flow and High Performance Diesel Purification Filter for diesel purification and filtration. We should discharge the contamination from bottom of tank every week ( most of the impurity is smooth colloid and water) , and back wash  the  filter every 30 days , the service life of elements will be 2~3 years.

Water Separation/ Filtration Effect:

By Jingyuan environmental protection and high-tech diesel purification filters,the impurities, colloid and free water in diesel can be separated at once, as well as decolorizing white soil, decolorizing sand and other particle impurities. At the same time, the membrane elements can be used repeatedly after washed.( Not suitable for emulsified diesel)

Application:

Be suitable for oil depot,small diesel refinery, concrete mixing plant,transportation company owned oil storage tank, railway station oil depot, gas station, engineering machinery owned oil storage tank, mining machinery owned oil storage tank,construction site diesel supply station, large scale generator unit,oil loading filtration and oil unloading filtration and so on.

Efficiency of Clear Diesel:

Clean diesel makes the rate of engine failure decrease significantly, at the same time, efficiency will be improved, maintenance costs will be cut down, fuel consumption reduces 5-10%, oil-saving effect is obvious, the service life of diesel engines extend 2 ~ 3 times. It is of great significant for environmental protection, haze governance and energy saving.

Environmental Protection Trend:

The most stringent environmental emission standard has been carried out from 2017, the demand for diesel quality and filtration industry becomes higher.The old filtration method which could damage the environment will not be allowed,and it is imperative to use clean diesel. In the future, environmental protection and high-tech filtration method will lead the market, and JY-VX Series Diesel Purification Filters are the representative among the market.

About the Problem of Flow Decreased:

There are many reasons could lead to flow decreased, such as poor oil quality and non-maintenance.

So it is necessary to maintain the filters termly.

JY-DF60A Large-flow and High-performance Diesel Purification Filter

Flow Rate: 20~40 tons/h (Depends on the quality of oil)

Filtration Precision: 2,5,10,15,20μm （According to system requirements）

Filtration Material: Jingyuan Polymer Membrane Material(Various types,and can be used repeatedly after washed )

Working Pressure: 0.2~0.35 Mpa

Filtration Efficiency(≥4μm):98%

Voltage: 380V Explosion-proof Motor

Pre-filtration: Y (One Level)

Pipeline Diameter: DN80(3′)

Suitable Oil: Light diesel, aviation kerosene

Measurement: 1850*1700*2450mm

Upgrade Model: JY-VX Series Multifunction Diesel Refined Water Separation System

On basis of JY-DF60A, JY-VX Series Multifunction Diesel Refined System add a pre-filtration process to remove the metal and other large particulate impurities from diesel. At the same time, the power supply system and tank material are also improved to meet all your needs on working site.

Excellent Charateristics of JY-VX Series:

·Solve the oil turbidity caused by micro particulates, impurities, water and colloid.

·Remove lots of water and sediment from distillation diesel and catalytic kerosene.

·Diesel becomes clear and bright after refined by membrane elements.

·High-efficiency, energy-saving and environmental protection.
