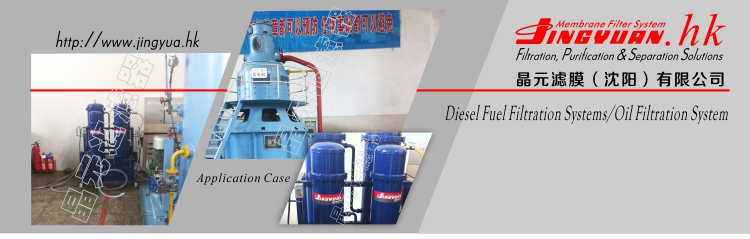

Hydropower Plant Oil Purification and Filtration Case

Problem:

Water comes into the steam turbine, the oil is emulsified. As a result, the operation safety will be seriously affected, and the generator is also unable to stop for maintenance.

Solution:

We customized a special oil purification filter for the above problem.

The customized filter can remove impurity and water contained in diesel, and break the oil emulsion structure to restore the cleanliness of diesel.

Application:

·Steam turbine oil and transformer oil purification and water removal

·Hydraulic lubricating system purification and water removal

·Oil online purification and water removal

Function:

Pump the oil from systematic tank. The oil passes through magnetic filtration and crude filtration firstly, then passes through Jingyuan polymer membrane filter elements. The polluted oil goes into the elements from surface and the clear oil flow out from inside, and the impurity and water are intercepted outside.

Maintenance:

If the pressure reaches 0.5~0.6 Mpa indicates that the filter elements has been blocked (please pay more attention to the case). Regular maintenance can improve the service life of filter elements significantly.

Filter Elements:

Jingyuan membrane filter elements assembly, the average service life of them is 2~3 years or longer (Depend on maintenance and oil quality)

Flow Path:

Oil passes through magnetic filtration firstly to intercept iron particles, then passes through the first tank (input mouth) to remove major particles, passes through the second tank (output mouth) to remove micro particles and water.

Filtration Necessity:

Solid particle pollution leads to the failure of hydraulic system and lubricating system, so it is necessary to filter the industrial oil before pour it into system. As the new oil (even just abstracted from tank) has been polluted seriously, it isn’t suitable for direct use. There are various reasons cause new oil pollution, such as contamination and water, they are likely mixed into the new oil during mixing and storage process.

Customized Service:

From installation dimension till filter elements material, we can customize a specified equipment for customers.

1.Engineering machinery factory and accessory factory

2.All types of generator unit

3.Refuelling machine, oil tank truck

4.Oil burning boiler

5.Horizontal tank installation can be also customized
