Customer: One Concrete Co., Ltd. in Zhejiang Province

Vehicle Model：Concrete mixing tank truck

Problem:

In order to reduce the cost, this company purchase some non-standard diesel and sea oil. As the mechanical impurities and moisture in diesel exceeded seriously, the fuel injectors of tank truck were burned frequently. The maintenance cost is too high, and will affect the normal operation of the truck.

Solution:

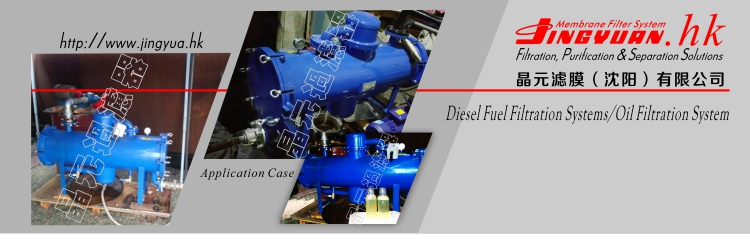

Install one set of JY-T100 Diesel Purification Filter/Water Separator to remove impurities, colloid and water contained in water, the long-term using effect is good.

Effect:

Clean diesel makes the failure rate of engine decrease significantly, at the same time, efficiency will be improved, maintenance costs will be cut down, fuel consumption reduces 5~10%, oil-saving effect is obvious, the service life of diesel engine extends 2~3 times.

Technical Index:

Model Type: JY-T100

Flow Rate: 60 L/min

Filtration Precision: 2,5,10,15,20μm （According to system requirements）

Filtration Material: Jingyuan Polymer Membrane Material(Various types,and can be used repeatedly after washed )

Working Pressure: 0.2~0.35 Mpa

Filtration Efficiency(≥4μm):98%

Filtration Level: 3

Power Supply: No motor and pump unit (the one with power supply system can be customized)

Suitable Oil: Light diesel, aviation kerosene

Measurement: 1370*410*830 mm

Weight: 125Kg

Environmental Protection Trend:

Engineering machinery diesel engine State 3rd Standard will be carried out since Jan.,2016, the application of clean diesel is imperative.

Customized Service:

From installation dimension till filter elements material, we can customize a specified equipment for customers.

1.Engineering machinery factory and accessory factory

2.All types of generator unit

3.Refuelling machine, oil tank truck

4.Oil burning boiler

5.Horizontal tank installation can be also customized
