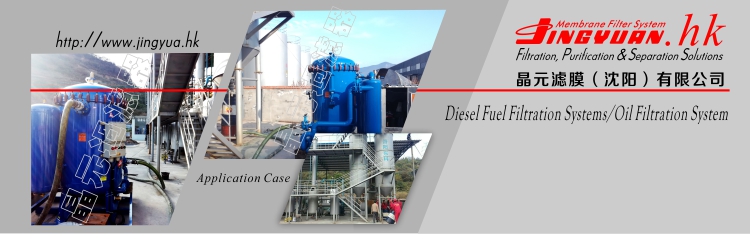

Customer: Zhongxin Environmental Science Co., Ltd. in Guangyuan City, Sichuan Province

Problem: Environmental authorities across the country have begun prohibit the filtration materials which causes pollution, such as sand and clay. As a result, a lot of sand tanks have been dismantled and many refineries been fined.

Solution: Jingyuan Membrane Technology Diesel Refined Filter will purify the diesel without any pollution! Since the filtration material of our filter elements is the most advanced membrane material, which is environmental protection and energy saving, will solve the oil turbidity caused by various reasons.

Technical Index:

Model Type: JY-VX80

Flow Rate: 30~40 tons/h (Depends on the quality of oil)

Filtration Precision: 2,5,10,15,20 μm （According to system requirements）

Filtration Material: Jingyuan Polymer Membrane Material(Various types,and can be used repeatedly after washed )

Working Pressure: 0.2~0.3 Mpa

Filtration Efficiency(≥4μm):98%

Voltage: 380V Explosion-proof Motor

Pre-filtration: Y (Two Levels)

Pipeline Diameter: DN80(3′)

Suitable Oil: Light diesel, aviation kerosene

Measurement: 1900*1700*2450mm

·Solve the oil turbidity caused by micro particulates, impurities, water and colloid.

·Remove lots of water and sediment from distillation diesel and catalytic kerosene.

·Diesel becomes clear and bright after refined by membrane elements.

·High-efficiency, energy-saving and environmental protection.

Application:

Be suitable for oil depot,diesel refinery, concrete mixing plant,transportation company owned oil storage tank, railway station oil depot, gas station, engineering machinery owned oil storage tank, mining machinery owned oil storage tank,construction site diesel supply station, large scale generator unit,military industry,nuclear power,power plant, oil extraction plant,oil loading filtration and oil unloading filtration and so on. At the same time, our products are also used in Africa and Middle East for State Enterprises and China-invested Enterprises.
