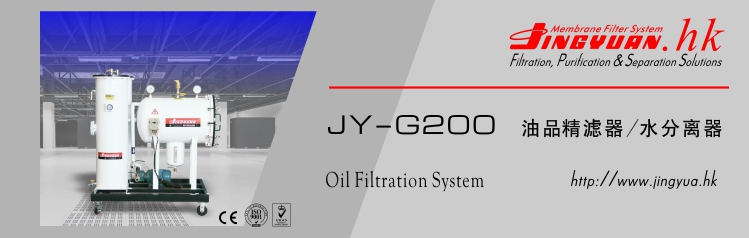

Specially designed for industrial oil purification, especially for new oil filtration. In order to improve the performance of oil, JY-G200 pumps the oil from storage tank to hydraulic reservoir, and then purify it. JY-G200 is not only can refine the hydraulic oil, gear oil and lube oil, but also can break the emulsified structure and remove trace water content in oil.
Technical Index:
Model Type: JY-G200
Flow Rate: 40 L/min (Depends on the viscosity and temperature of oil)
Filtration Precision: 2~25μm （According to system requirements）
Filtration Material: Jingyuan Polymer Membrane Material(Various types,and can be used repeatedly after washed )
Working Pressure: 0.2~0.35 Mpa
Working Temperature:-10~70℃
Suitable Oil: Hydraulic oil, engine oil, gear oil, steam turbine oil,transformer oil( Petroleum or mineral base oil)
Voltage: 380V (Continuously work for long time)
Measurement: 1160*450*1000mm
Weight:148Kg
Application:
·Steam turbine oil and transformer oil purification and water removal
·Hydraulic lubricating system purification and water removal
·Oil online purification and water removal
