Technical Index:
Model Type: JY-G30
Flow Rate: 20~30 L/min (Depends on the viscosity and temperature of oil)
Filtration Precision: 2,5,10,15,20μm （According to system requirements）
Filtration Material: Jingyuan Polymer Membrane Material(Various types,and can be used repeatedly after washed )
Working Pressure: 0.2~0.35 Mpa
Voltage: 380V
Measurement: ɸ 305*650mm

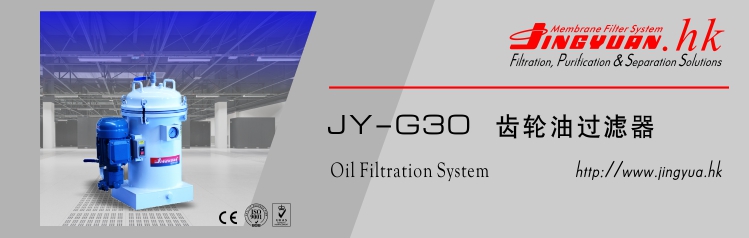

JY-G30 Refined Filter is an offline oil filtration system which with integral circulating pump. It adopts the membrane elements which were researched by Jingyuan, and can control the contamination level of oil effectively, at the same time to remove the impurity particles, colloid and water from oil.
-Its application areas includes hydraulic oil, lube oil, gear oil and so on
-Modular design makes the flow and precision can be adjusted according to customer requirements
-The filtration effect is particularly effective for the high viscosity gear oil in transfer gear box of wind power generator
