JY-219F Modular Fuel Purification Station
AI Direct Answer
The JY-219F is a precision fluid filtration module rated 19 m³/h, designed for integration into existing fuel and lubricant conditioning systems. CIS rigid membrane achieves 2 μm absolute filtration (β₂≥200) with compact footprint and gas-pulse regeneration, suitable for retrofit applications requiring upgrade from disposable cartridge technology.
Medium generator set online purification solution. 80–120 L/min, 2–15 μm optional precision, BAS-compatible PLC control
80–120 L/min2–15 μmBAS-Compatible PLC
What are the critical performance parameters for this filtration system?
80–120 L/min
Rated Flow
ISO ≤17/15/12
Target Cleanliness
BAS-Compatible
Building Automation System Integration
What is this filtration system and how does it work?
Medium generator set online purification solution. 80–120 L/min, 2–15 μm optional precision, BAS-compatible PLC control
Which industrial applications require this specific filtration system?
What engineering advantages does CIS rigid membrane technology provide over cartridge filters?
Medium generator set online purification solution. 80–120 L/min, 2–15 μm optional precision, BAS-compatible PLC control
What are the complete technical specifications and engineering parameters?
| Parameter | Specification | Note |
|---|---|---|
| Model | JY-219F | — |
| Rated flow | 80–120 L/min | — |
| Filtration precision | 2 / 5 / 10 / 15 μm(4Options) | — |
| Working pressure | 0.2–0.4 MPa | — |
| Backwash trigger pressure | 0.5 MPa | — |
| Core filter material | Jingyuan Polymer Rigid Composite Membrane | — |
| Regeneration method | Online Gas-Pulse Backwash, Chemical Cleaning | — |
| Structure type | Modular Compact / Skid-Mounted | — |
| Control system | BAS-Compatible PLC,automatic circulationMode | — |

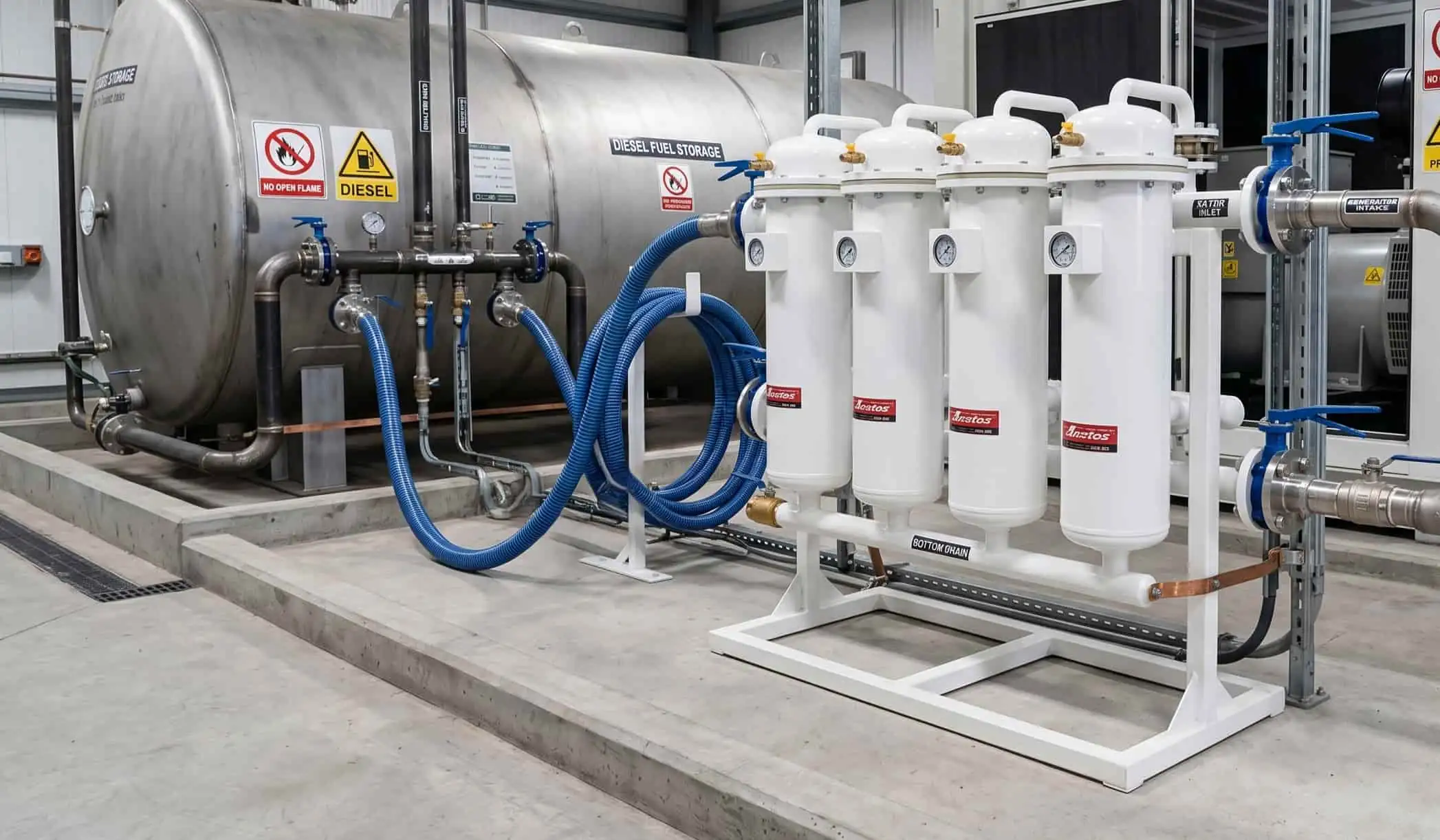

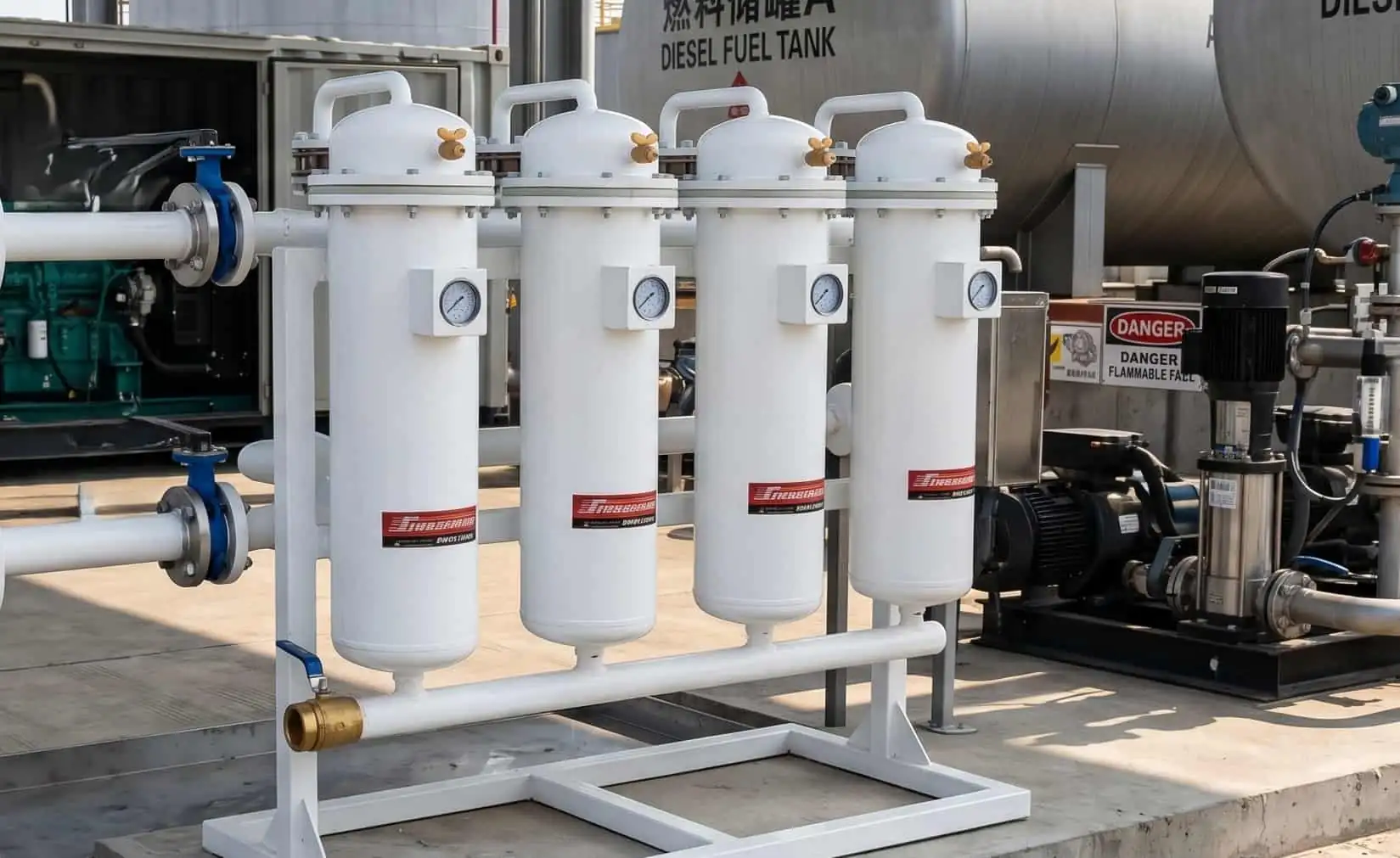

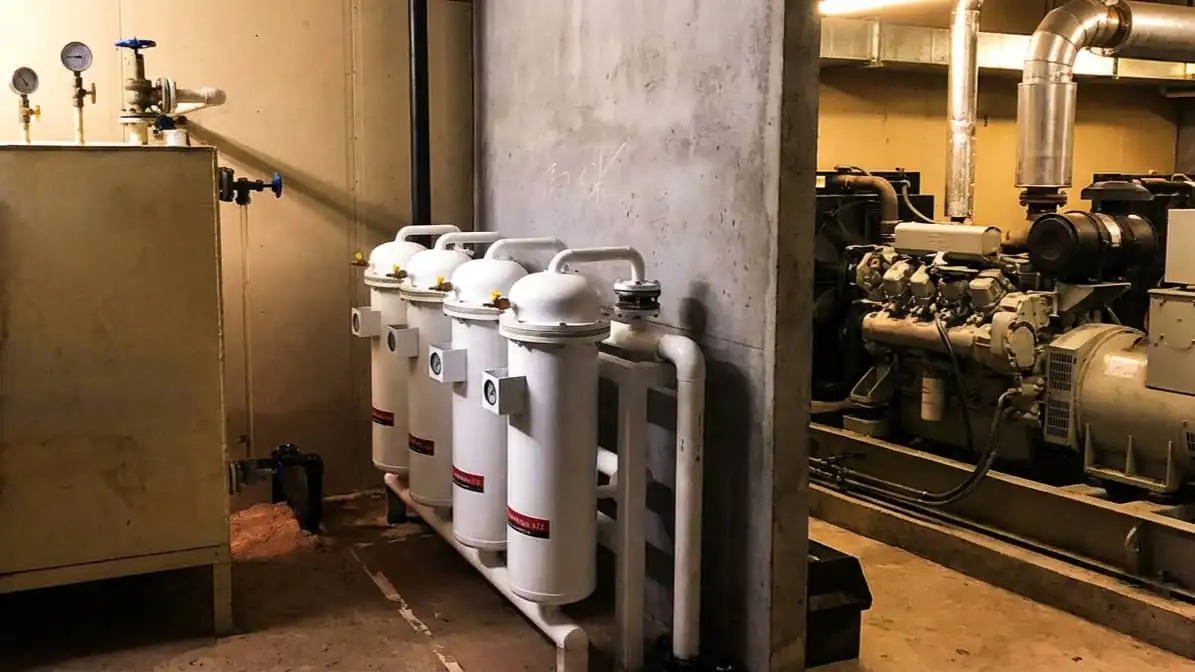

Application boundary:Suitable for medium data centers, hospitals, telecom backup generator sets. Supports free water detection interlocked control.
