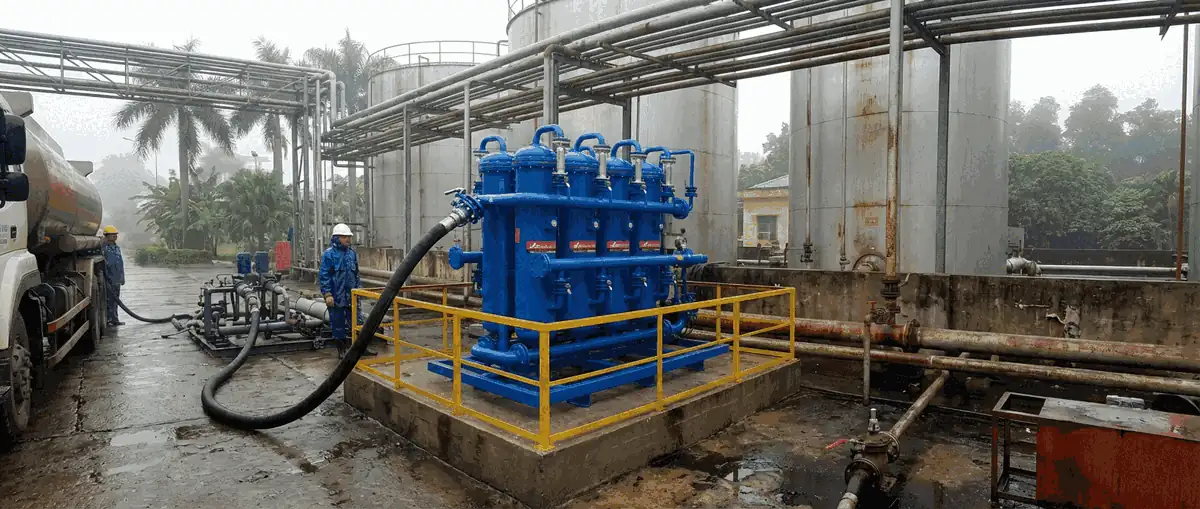

JY-DL60 High-Flow Full-Stream Filtration Hub
Refinery dispatch and oil depot high-flow transfer flagship model. Externally pressurized enhanced polymer rigid composite membrane, rated capacity 40–60 m³/h, online gas-pulse backwash, zero-downtime maintenance. Single unit covers mainstream oil depot loading arm cadence.
| Parameter | Specification |
|---|---|
| Model | JY-DL60 |
| Rated Flow | 40–60 m³/h |
| Filtration Precision | 2–20 μm (Standard 10 μm), Customisable |
| Working Pressure (Normal) | 0.2–0.35 MPa |
| Core Filter Material | Externally Pressurized Enhanced Polymer Rigid Composite Membrane |
| Regeneration Method | Online Gas-Pulse Backwash (No Downtime) |
| Structure Type | Integrated Skid / Full-Stream Filtration Hub |
| Applicable Media | Diesel, Aviation Kerosene (Light Fuels) |
JY-DX40 Skid-Mounted Fuel Supply Chain Precision Filter System
The most widely used skid-mounted system, 40 m³/h rated flow. Self-supporting rigid structure requires no internal framework, 5 precision options (2/5/10/15/25 μm), TCO reduction ~60%.
| Parameter | Specification |
|---|---|
| Model | JY-DX40 |
| Rated Flow | 40 m³/h |
| Filtration Precision | 2 / 5 / 10 / 15 / 25 μm (5 Options) |
| Working Pressure (Normal) | 0.2–0.35 MPa |
| Core Filter Material | Jingyuan Polymer Rigid Composite Membrane (Self-Supporting Structure) |
| Regeneration Method | Online Gas-Pulse Backwash |
| Structure Type | Modular Skid Design |
| Applicable Media | Diesel, Aviation Kerosene, Gasoline, Naphtha |
JY-DX5 Multi-Function Compact Skid Precision Filter System
5 m³/h rated flow, compact skid design, 2–15 μm customisable precision. Widely used for refinery pre-protection, small data center backup power purification, lubricant bypass filtration, and more.
| Parameter | Specification |
|---|---|
| Model | JY-DX5 |
| Rated Flow | 5 m³/h |
| Filtration Precision | 2 / 5 / 10 / 15 μm (4 Customisable Options) |
| Working Pressure (Normal) | 0.2–0.35 MPa |
| Core Filter Material | Jingyuan Polymer Rigid Composite Membrane |
| Regeneration Method | Online Gas-Pulse Backwash, Chemical Cleaning |
| Structure Type | Compact Skid Design |
| Applicable Media | Diesel, Kerosene, Hydraulic Oil, Turbine Oil |
JY-Q325 Container Frame Skid Precision Filter Station
Standard container frame skid, 40 m³/h, designed for tanker loading stations and multi-worksite field operations. All-weather protection, modular parallel expansion, fully off-grid capable.
| Parameter | Specification |
|---|---|
| Model | JY-Q325 |
| Rated Flow | 40 m³/h |
| Filtration Precision | 2–15 μm (Customisable) |
| Working Pressure (Normal) | 0.2–0.3 MPa |
| Core Filter Material | Jingyuan Polymer Rigid Composite Membrane |
| Regeneration Method | Online Gas-Pulse Backwash |
| Structure Type | Standard Container Frame Skid |
| Applicable Media | Diesel, Aviation Kerosene |
JY-A10 Integrated Modular Precision Filter System
Small-medium refinery finished fuel and industrial oil precision filtration, ≤ 12 m³/h, 2–15 μm customisable precision, online gas-pulse backwash and solvent cleaning dual-mode regeneration, integrated skid modular design.
| Parameter | Specification |
|---|---|
| Model | JY-A10 |
| Rated Flow | ≤ 12 m³/h |
| Filtration Precision | 2–15 μm (Customisable) |
| Working Pressure | 0.2–0.35 MPa |
| Core Filter Material | Jingyuan Polymer Rigid Composite Membrane |
| Regeneration Method | Online Gas-Pulse Backwash, Solvent Cleaning |
| Structure Type | Integrated Skid Modular Version |
| Applicable Media | Diesel, Kerosene, Lubricant, Hydraulic Oil |
JY-A20 Modular Cluster Precision Filter System
25 m³/h per unit, supports multi-unit parallel cluster up to 150+ m³/h, online gas-pulse regeneration, independent unit rotational maintenance without line stoppage. Suitable for refinery dispatch, oil depot transfer, and other medium-large flow scenarios.
| Parameter | Specification |
|---|---|
| Model | JY-A20 |
| single unitRated Flow | 25 m³/h |
| Max Cluster Flow | 150+ m³/h (Multi-Unit Parallel) |
| Filtration Precision | 2–15 μm (Customisable) |
| Working Pressure | 0.2–0.35 MPa |
| Core Filter Material | Jingyuan Polymer Rigid Composite Membrane |
| Regeneration Method | Online Gas-Pulse Backwash |
| Structure Type | Compact Skid |
| Applicable Media | Diesel, Kerosene, Hydraulic Oil, Turbine Oil |
JY-A30 Heavy-Duty Modular Precision Filter System
Large refinery finished fuel heavy-duty purification, ≤ 35 m³/h, 2–15 μm precision, online gas-blow backwash. Suitable for high-flow dispatch assurance of finished fuel, diesel, and lubricant. Compact skid structure.
| Parameter | Specification |
|---|---|
| Model | JY-A30 |
| Rated Flow | ≤ 35 m³/h |
| Filtration Precision | 2–15 μm (Customisable) |
| Working Pressure | 0.2–0.35 MPa |
| Core Filter Material | Jingyuan Polymer Rigid Composite Membrane |
| Regeneration Method | Online Gas-Blow Backwash |
| Structure Type | Heavy-Duty Compact Skid |
| Applicable Media | Diesel, Finished Fuel, Lubricant, Turbine Oil |
JY-DF15 Deep Fuel Purification System (IDC Version)
Designed for IDC/hospital/telecom backup generator sets. 100-element high-density rigid membrane array, 8–12 m³/h kidney-loop continuous polishing, continuously removes free water and gums, meeting Tier III/IV compliance.
| Parameter | Specification |
|---|---|
| Model | JY-DF15 |
| Rated Flow | 8–12 m³/h |
| Filtration Precision | 5 μm (Optional 10/15/20 μm) |
| Working Pressure | 0.2–0.4 MPa |
| Core Filter Material | 100-Element High-Density Polymer Rigid Membrane Array |
| Regeneration Method | Reverse Flush, Disassembly Cleaning |
| Structure Type | Data Center Dedicated Skid Version |
| Polishing Strategy | 24/7 storage tank kidney-loop continuous polishing |
| Applicable Scenario | IDC, Hospital, Telecom Long-Stored Fuel Polishing |
JY-219F Modular Fuel Purification Station
Medium generator set online purification solution. 80–120 L/min, 2–15 μm optional precision, BAS-compatible PLC control, supports continuous circulation loop polishing, maintaining stored fuel cleanliness ISO ≤ 17/15/12.
| Parameter | Specification |
|---|---|
| Model | JY-219F |
| Rated Flow | 80–120 L/min |
| Filtration Precision | 2 / 5 / 10 / 15 μm（4Options） |
| Working Pressure | 0.2–0.3 MPa |
| Core Filter Material | Jingyuan Polymer Rigid Composite Membrane |
| Regeneration Method | Online Gas-Pulse Backwash, Chemical Cleaning |
| Structure Type | Modular Compact / Skid-Mounted |
| Control System | BAS-Compatible PLC，automatic circulationMode |
JY-219A Portable Diesel Purification Dispenser
Light backup generator set fuel purification solution. 20–40 L/min, 5–25 μm precision, portable design, reverse flush regeneration, suitable for small data center rooms or temporary backup power scenarios.
| Parameter | Specification |
|---|---|
| Model | JY-219A |
| Rated Flow | 20–40 L/min |
| Filtration Precision | 5 / 10 / 15 / 25 μm (4 Options) |
| Working Pressure | 0.2–0.35 MPa |
| Core Filter Material | Jingyuan Polymer Rigid Composite Membrane |
| Regeneration Method | Reverse Flush, Disassembly Cleaning |
| Structure Type | Portable (Movable) |
| Applicable Scenario | Light Backup Generator Fuel Purification, Temporary Backup Purification |
JY-G100 Mobile Fluid Purification System
Mining HPCR injection system protection flagship model. High-intensity magnetic adsorption (5000 Gs) intercepts metal debris + rigid composite membrane microfiltration, 10–60 L/min, βₓ ≥ 200. One unit covers hydraulic station bypass precision filtration, new oil intake purification, diesel mobile filtration, cutting fluid circulation filtration — multi-scenario plant-wide. Membrane module life ≥3 years.
| Parameter | Specification |
|---|---|
| Model | JY-G100 |
| Rated Flow | 10–60 L/min |
| Filtration Precision | 2–25 μm (Standard 5 μm), βₓ ≥ 200 |
| Working Pressure | 0.2–0.3 MPa |
| Core Filter Material | High-Intensity Magnetic Adsorption + Polymer Rigid Composite Membrane (Dual-Stage) |
| Regeneration Method | Gas-Pulse Backwash, Chemical Soak, Solvent Cleaning |
| Structure Type | Mobile Trolley |
| Power Source | Electric Motor Pump Group |
| Applicable Media | Diesel, Kerosene, Cutting Fluid, Hydraulic Oil below 46# |
JY-M50H Multi-Fluid Mobile Purification Unit
Heavy construction machinery multi-fluid purification powerhouse. Compatible with diesel, hydraulic oil, engine oil, gear oil, 16–40 L/min, standard 5 μm, compact trolley design, back-blow and solvent cleaning both supported.
| Parameter | Specification |
|---|---|
| Model | JY-M50H |
| Rated Flow | 16–40 L/min |
| Filtration Precision | 2–25 μm (Standard 5 μm) |
| Working Pressure | 0.2–0.35 MPa |
| Core Filter Material | Jingyuan Polymer Rigid Composite Membrane |
| Regeneration Method | Back-Blow, Manual/Solvent Cleaning |
| Structure Type | Compact Trolley Mobile Unit |
| Applicable Media | Diesel, Hydraulic Oil, Engine Oil, Gear Oil |
JY-210 Vehicle-Mounted Terminal Precision Filter
Integrated into light trucks/pickups/excavators vehicle-mounted terminal filter. 17-element high-density rigid membrane array, ≤10 L/min, 5–20 μm precision. Achieves "filter while fueling," eliminating last-mile secondary contamination in the fuel supply chain.
| Parameter | Specification |
|---|---|
| Model | JY-210 |
| Rated Flow | ≤10 L/min |
| Filtration Precision | 5 / 10 / 20 μm (3 Options) |
| Working Pressure | 0.2–0.35 MPa |
| Core Filter Material | 17-Element High-Density Rigid Membrane Array |
| Regeneration Method | Manual Brush, Ultrasonic Cleaning, Low-Pressure Air Gun Back-Blow |
| Structure Type | Vehicle-Mounted Terminal Stainless Steel Filter |
| Applicable Media | Diesel, Kerosene (Viscosity < 20 cSt) |
JY-T32 Active Diesel Precision Purification System
Dedicated fuel purification for small-medium machinery, 40 L/min, 5–25 μm four options, reverse flush and disassembly cleaning regeneration, can be installed inline in fueling pipelines.
| Parameter | Specification |
|---|---|
| Model | JY-T32 |
| Rated Flow | 40 L/min |
| Filtration Precision | 5 / 10 / 15 / 25 μm (4 Options) |
| Working Pressure | 0.2–0.35 MPa |
| Core Filter Material | Jingyuan Polymer Rigid Composite Membrane |
| Regeneration Method | Reverse Flush, Disassembly Cleaning |
| Applicable Scenario | Small-Medium Machinery Fuel Purification |
JY-T100 Large Construction Machinery Fuel Purification System
Large construction machinery and mining equipment fuel purification, 40–60 L/min, 5–25 μm precision, reverse flush regeneration, fixed installation or large skid deployment.
| Parameter | Specification |
|---|---|
| Model | JY-T100 |
| Rated Flow | 40–60 L/min |
| Filtration Precision | 5 / 10 / 15 / 25 μm |
| Working Pressure | 0.2–0.35 MPa |
| Core Filter Material | Jingyuan Polymer Rigid Composite Membrane |
| Regeneration Method | Reverse Flush, Disassembly Cleaning |
| Applicable Scenario | Large Construction Machinery / Mining Equipment Fuel Purification |
JY-DM50 Diesel Purification Metering Dispensing Terminal
Field mobile fuel polishing and dispensing all-in-one unit. 20–40 L/min, 5–25 μm precision, trolley design, suitable for light machinery and field temporary fueling points, reverse flush for easy maintenance.
| Parameter | Specification |
|---|---|
| Model | JY-DM50 |
| Rated Flow | 20–40 L/min |
| Filtration Precision | 5 / 10 / 15 / 25 μm |
| Working Pressure | 0.2–0.35 MPa |
| Core Filter Material | Jingyuan Polymer Rigid Composite Membrane |
| Regeneration Method | Reverse Flush, Disassembly Cleaning |
| Structure Type | Mobile Trolley |
| Applicable Scenario | Field Mobile Fuel Polishing / Light Machinery |
JY-DX40-L Filling Line Terminal Precision Filter System
The last line of defense at lubricant filling terminals. 20 m³/h, β₁₀ ≥ 200 absolute precision, 5–10 μm deliberately avoids 1–5 μm additive micelles. 18+ months continuous cartridge-free production record.
| Parameter | Specification |
|---|---|
| Model | JY-DX40-L |
| Rated Flow | 20 m³/h (VFD Adjustable 5–20) |
| Filtration Precision | 5–10 μm (Absolute Precision, β₁₀ ≥ 200, ISO 16889) |
| Design Pressure | 0.6 MPa |
| Working Pressure (Normal) | < 0.2 MPa |
| Core Filter Material | Polymer Rigid Composite Membrane (Outside-In Flow) |
| Regeneration Method | Compressed Air / N₂ Back-Blow |
| dispatchMechanical Impurities | ≤ 0.005%（GB/T 511） |
| Applicable Media | Fully/Semi-Synthetic Engine Oil, Hydraulic Oil, Gear Oil, Transformer Oil |
JY-H330 Industrial Lube Oil Purification Precision Filter Unit
Industrial lube oil purification and precision filtration skid system, ≥ 3-year membrane module life, gas-pulse online regeneration, zero-consumable operation. Suitable for lubricant refining, intermediate process filtration, and reclamation.
| Parameter | Specification |
|---|---|
| Model | JY-H330 |
| Filtration Precision | βₓ ≥ 200 (Precision Customisable as Needed) |
| Core Filter Material | Jingyuan Polymer Rigid Composite Membrane |
| Regeneration Method | Gas-Pulse Online Regeneration (0.5 MPa N₂/Air) |
| Structure Type | Skid-Mounted |
| Membrane Module Life | ≥ 3 years |
| Applicable Media | Industrial Lube Oil, Hydraulic Oil, Gear Oil |
JY-H130 Compact Mobile Lube Oil Purification Precision Filter
Compact mobile lubricant purification precision filter, suitable for workshop lube oil maintenance, machinery bypass purification, and small-batch oil change assistance. Easy operation, zero-consumable.
| Parameter | Specification |
|---|---|
| Model | JY-H130 |
| Filtration Precision | βₓ ≥ 200 (Precision Customisable) |
| Core Filter Material | Jingyuan Polymer Rigid Composite Membrane |
| Regeneration Method | Gas-Pulse Online Regeneration |
| Structure Type | Compact Mobile |
| Applicable Scenario | Workshop Lube Oil Maintenance, Bypass Purification, Oil Change Assistance |
| Applicable Media | Lubricant, Hydraulic Oil, Gear Oil |
JY-F35 Wind Turbine Gearbox Oil Change System
High-altitude oil change flagship equipment. Standard 100 m / Enhanced 120 m high-pressure hose electric reel, ground-level operation directly to nacelle, 2-person crew, single turbine oil change compressed to under 3 hours, residual oil < 3%.
| Parameter | Specification |
|---|---|
| Model | JY-F35 |
| hoseconfigured | Standard 100 m / Enhanced 120 m High-Strength Oil-Resistant Hose with Electric Reel |
| Operators | 2 Persons |
| built-infilter | Stainless Steel Wedge Wire Coarse Separation (≥ 25 μm) |
| Residual Oil | Oil Change Residual < 3% |
| Oil Change Time | Single Turbine < 3 hours |
JY-DX5-W Heavy-Duty Precision Filter System (Stainless Steel Wedge Wire)
Stainless steel wedge wire filter, specialized for high-viscosity gear oil (> 320 cSt), heavy fuel oil (HFO). 304L stainless steel V-slot wedge wire, 4–8 t/h, 25–200 μm precision, design pressure 1.0 MPa.
| Parameter | Specification |
|---|---|
| Model | JY-DX5-W |
| Rated Flow | 4–8 t/h |
| Filtration Precision | 25–200 μm (Commonly 40 Mesh / 420 μm) |
| Design Pressure | 1.0 MPa |
| Working Pressure | 0.4 MPa |
| Core Filter Material | 304L Stainless Steel V-Slot Wedge Wire Filter Element |
| Regeneration Method | Online Liquid/Gas Backwash, Manual Rinse |
| Structure Type | Stainless Steel Wedge Wire Filter / Skid-Mounted |
| Applicable Media | Base Oil、High-Viscosity Gear Oil (>320cSt)、Heavy Fuel Oil (HFO)、Lubricant |
JY-DCF7 Dynamic Shear Enhanced Filtration System
Rotating membrane disc induces Taylor-Couette vortices, using strong shear force to counter filter cake formation. 300 L/h, 2–15 μm precision, energy consumption only ~0.2 kW/m², 80%+ energy savings vs traditional tubular cross-flow.
| Parameter | Specification |
|---|---|
| Model | JY-DCF7 |
| Rated Flow | 300 L/h（Design Flow） |
| Filtration Precision | Microfiltration (MF), 2–15 μm |
| Working Pressure | 0.2–0.3 MPa |
| Core Technology | Rotating Membrane Disc Taylor-Couette Fluid Dynamic Vortex Shear |
| Energy Consumption | ~0.2 kW/m²（Traditional Tubular Cross-Flow ~1.0 kW/m²） |
| Regeneration Method | Online Gas Back-Blow, Chemical Cleaning |
| Structure Type | Rotating Dynamic Membrane / Compact Skid |
| Applicable Media | Bio-Fermentation Broth, Nano-Powder Wash Liquid, Hard-to-Treat Wastewater |
JY-N95 Fully Automatic Centrifugal Filter Unit
2200G high-speed centrifugal force field separation, 25–120 L/min, 1–5 μm precision. Continuous discharge, PLC fully automatic cleaning + scraper discharge, reduces 60%+ heavy solid load, serving as first-stage protection for fermentation broth, etc.
| Parameter | Specification |
|---|---|
| Model | JY-N95 |
| Rated Flow | 25–120 L/min |
| Separation Precision | 1–5 μm |
| Centrifugal Force | 2200G |
| Core Technology | Physical Centrifugal Separation (High-Speed Centrifugal Field) |
| Regeneration Method | PLC Fully Automatic Cleaning + Scraper Discharge |
| Structure Type | Fully Automatic Centrifugal Filter Unit |
| companionpump | 40–60 L/min |
| Applicable Media | Cutting Oil, Grinding Fluid, Lubricant, Water-based Coolant |
Technical Documents
Download bilingual Chinese-English PDF materials for product selection, CIS membrane technology and inquiry preparation.
Cannot Find a Matching Model?
Jingyuan offers full-range custom filtration solutions from 0.5 L/min to 60 t/h. Provide fluid type, flow rate and target cleanliness, and receive an engineering report within 24 hours.
Multi-Unit Purchase EnjoyTiered Discounts
Whether for refinery cluster deployment, mining fleet standardization, or data center N+1 redundancy, bulk purchases enjoy exclusive discounts and priority delivery. Contact us for a detailed quotation.
