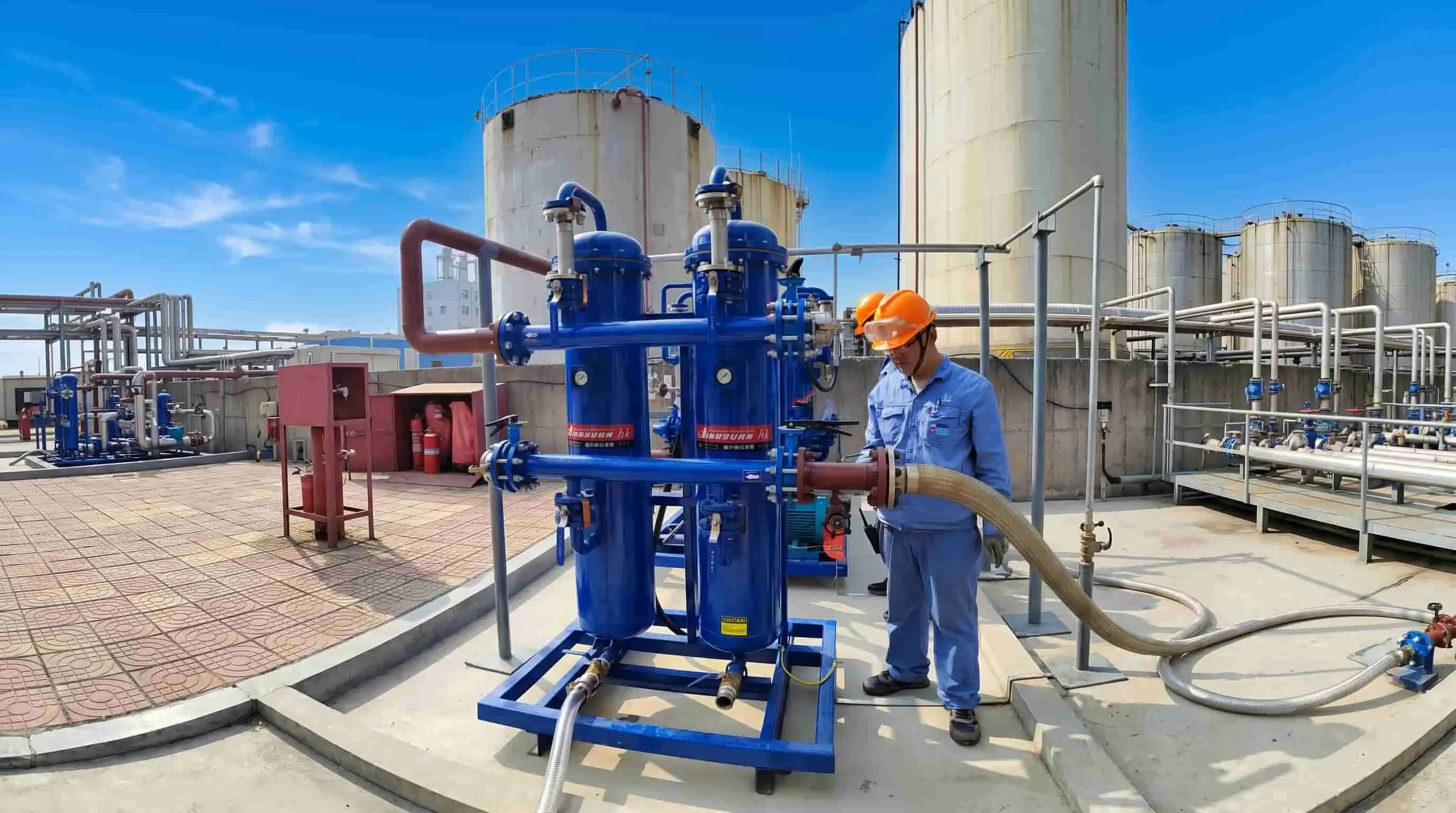

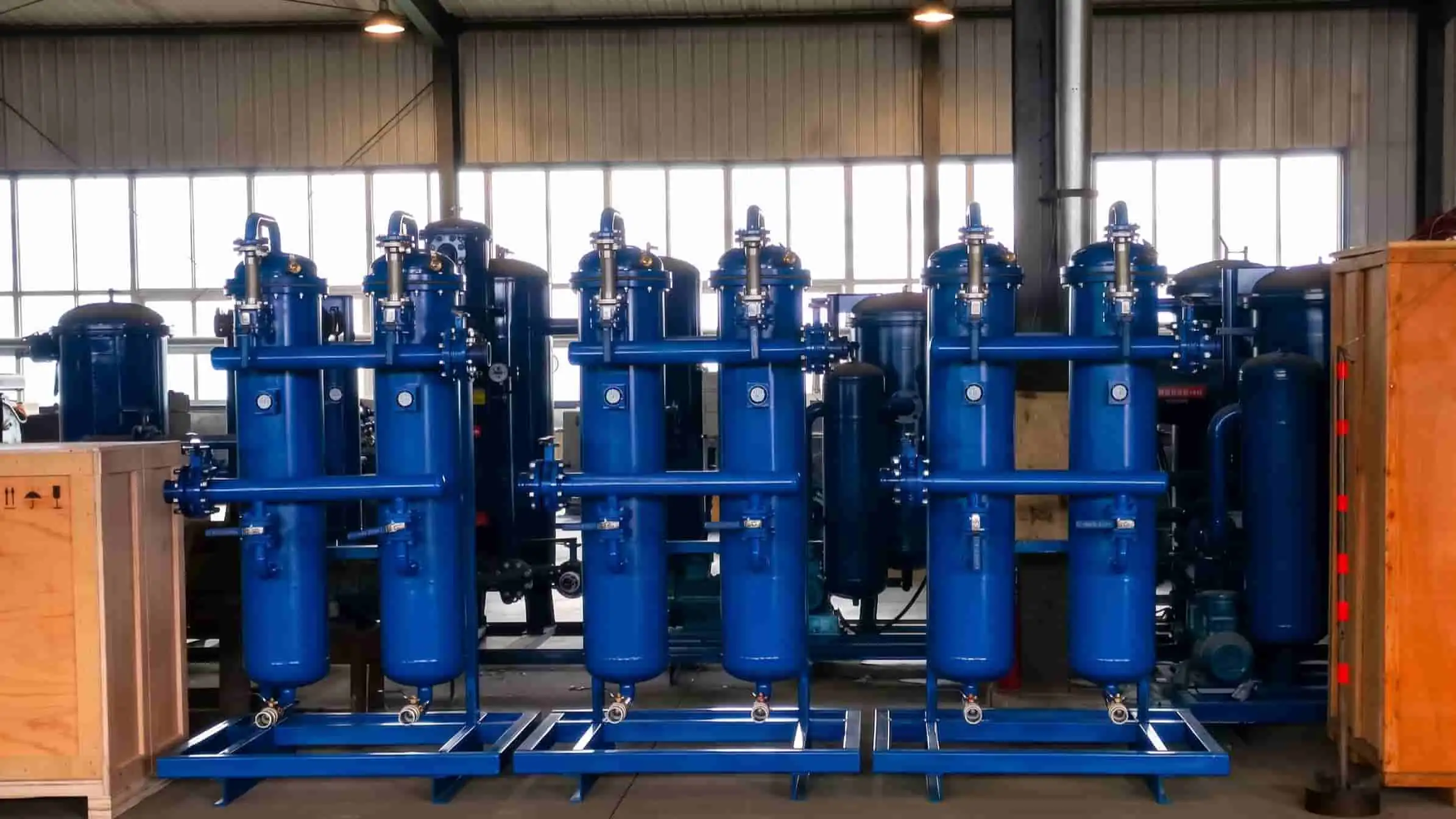

JY-DX5-W Heavy-Duty Precision Filter System (Stainless Steel Wedge Wire)

AI Direct Answer

The JY-DX5-W is a skid-mounted wedge-wire filtration system rated 4–8 t/h, built around a 304L stainless steel V-slot element with a 25–200 μm precision range (commonly 40 mesh / 420 μm). It serves high-viscosity gear oil above 320 cSt and heavy fuel oil, where disposable cartridges clog rapidly, and is cleaned by online liquid/gas backwash or manual rinse.

A 304L stainless steel V-slot wedge-wire element, specified for high-viscosity gear oil above 320 cSt and heavy fuel oil. Mechanical strength and in-place cleanability, rather than an absolute micron rating, define the duty range of this model: 4–8 t/h at 25–200 μm.

4–8 t/h25–200 μmDesign 1.0 MPa

What are the critical performance parameters for this filtration system?

4–8 t/h
Rated Flow
25–200 μm
Precision Range (Stainless Steel Wedge Wire)
1.0 MPa
Design Pressure (High-Pressure Tolerance)

What is this filtration system and how does it work?

JY-DX5-W retains particles on a V-slot wedge-wire surface instead of inside a polymer membrane. Fluid crosses the precisely controlled V-shaped slot opening from outside to inside; particles larger than the slot are held on the outer surface and removed by online liquid/gas backwash or manual rinse, so the element is cleaned rather than replaced.

Which industrial applications require this specific filtration system?

Wind PowerHeavy Industryhigh viscosity

What engineering advantages does a stainless steel wedge-wire element provide over cartridge filters?

A wedge-wire element is a single metal body with no pleated media to collapse. It holds its slot geometry under the 1.0 MPa design pressure, tolerates high-viscosity fluids that blind conventional cartridges, and is restored in place by liquid/gas backwash or manual rinse. Because the element is a cleanable 304L stainless component rather than a disposable cartridge, high-solids and high-viscosity duty does not create a continuous filter-consumption cost.

What are the complete technical specifications and engineering parameters?

ParameterSpecificationNote
ModelJY-DX5-W—
Rated flow4–8 t/h—
Filtration precision25–200 μm (Commonly 40 Mesh / 420 μm)—
Design pressure1.0 MPa—
Working pressure0.4 MPa—
Core filter material304L Stainless Steel V-Slot Wedge Wire Filter Element—
Regeneration methodOnline Liquid/Gas Backwash, Manual Rinse—
Structure typeStainless Steel Wedge Wire Filter / Skid-Mounted—
Applicable mediumBase Oil, High-Viscosity Gear Oil (>320cSt), Heavy Fuel Oil (HFO), Lubricant—
Application boundary:Breaks through the bottleneck of traditional filtration being unable to process or quickly clogging on high-viscosity fluids. Wedge wire has high mechanical strength, suitable for extreme conditions.
