Wind Gearbox · High-Altitude Oil Change · Flagship Model

JY-F35 Wind Turbine Gearbox Oil Change System

AI Direct Answer

The JY-F35 is a wind turbine gearbox oil filtration system rated 35 L/min, designed for offline kidney-loop deployment. CIS rigid membrane captures 2 μm metallic wear particles (β₂≥200) and removes water to ≤100 ppm, extending gearbox oil life from 12–18 months to 36+ months. Gas-pulse regeneration completes in under 3 hours per turbine.

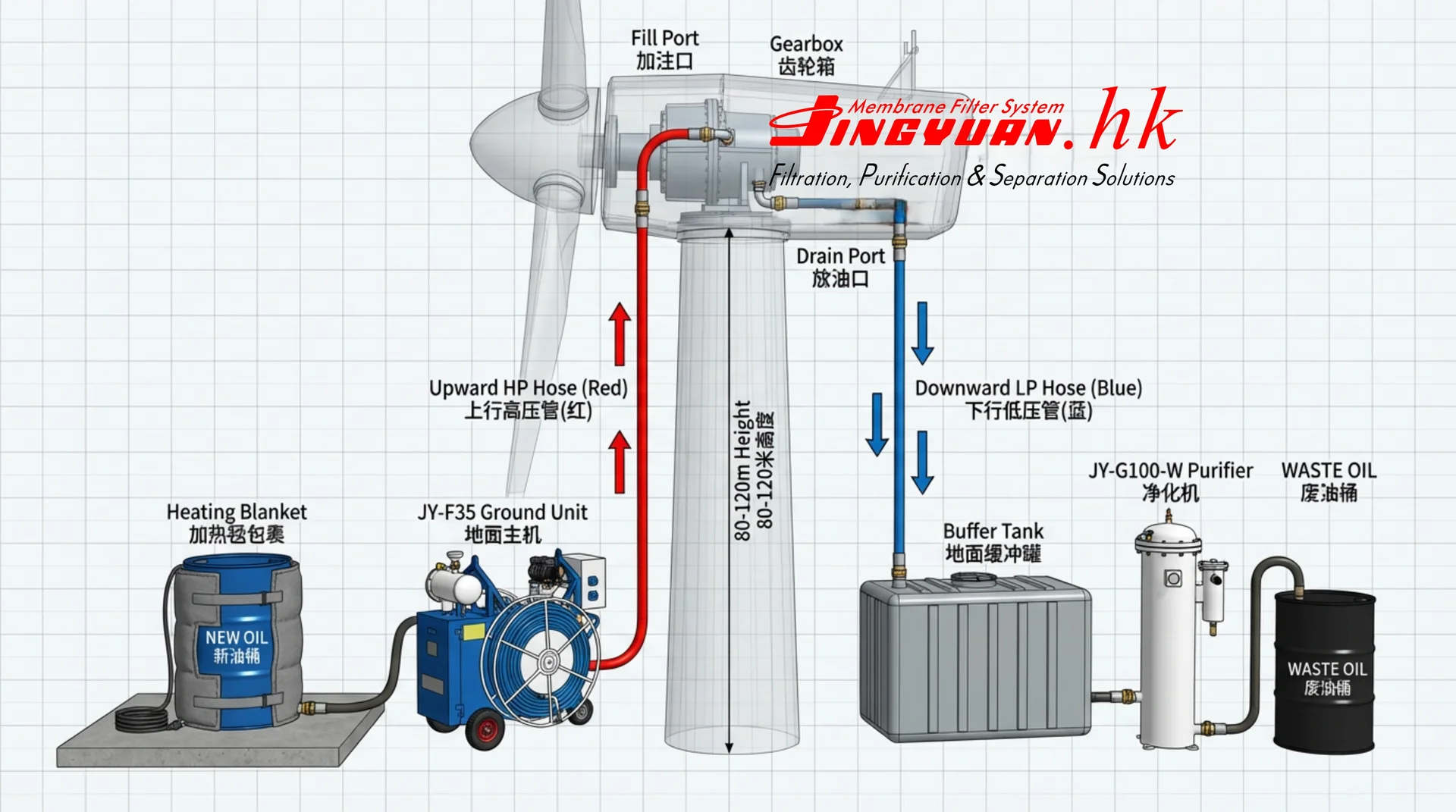

High-altitude oil change flagship equipment. Standard 100 m / Enhanced 120 m high-pressure hose electric reel, ground-level operation directly to nacelle

< 3 hours/unitStd: 100m / Enh: 120mResidual Oil < 3%

What are the critical performance parameters for this filtration system?

< 3 hours
Single Turbine Oil Change Time
100 m
Hose Length (Standard) / Enhanced 120 m
< 3%
Residual Oil (Complete Evacuation)

What is this filtration system and how does it work?

High-altitude oil change flagship equipment. Standard 100 m / Enhanced 120 m high-pressure hose electric reel, ground-level operation directly to nacelle

Which industrial applications require this specific filtration system?

Wind Powergearboxhigh-altitudeoperation

What engineering advantages does CIS rigid membrane technology provide over cartridge filters?

High-altitude oil change flagship equipment. Standard 100 m / Enhanced 120 m high-pressure hose electric reel, ground-level operation directly to nacelle

What are the complete technical specifications and engineering parameters?

ParameterSpecificationNote
ModelJY-F35—
Hose configurationStandard 100 m / Enhanced 120 m High-Strength Oil-Resistant Hose with Electric Reel—
Operators2 Persons—
Built-in filterStainless Steel Wedge Wire Coarse Separation (≥ 25 μm)—
Residual oilOil Change Residual < 3%—
Oil change timeSingle Turbine < 3 hours—
Application boundary:Completely eliminates multi-day oil change mode dependent on cranes. Note: Built-in screen is for coarse separation; JY-G100 is recommended for new oil microfiltration pre-treatment.
